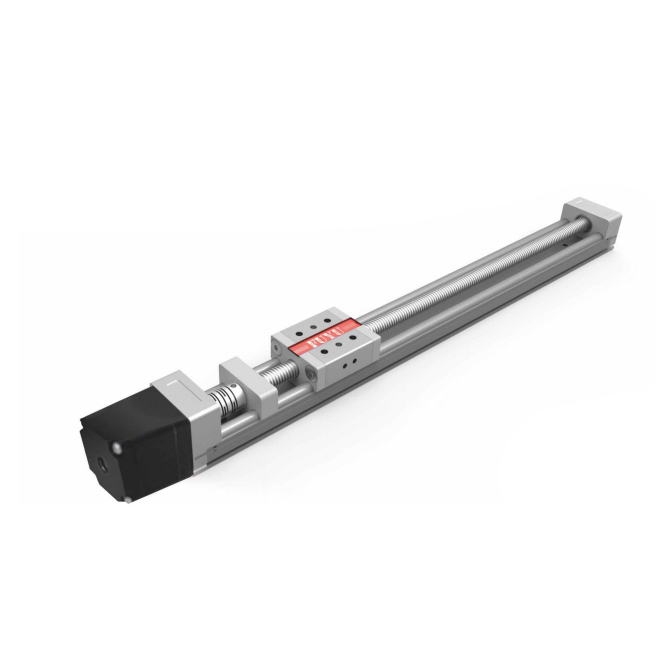

FSK30J Linear Module

Chinese Parameter English Translation Value
重复定位精度 Repeat Positioning Accuracy ±0.02 mm
T 型丝杆直径 Ladder-type Screw Diameter φ8 mm (uniform for all specifications)
T 型丝杆导程 Ladder-type Screw Lead 2 mm / 4 mm / 12 mm
噪音 Noise < 60 dB
使用温度 Operating Temperature -10℃ — +50℃
加减速时间 Acceleration and Deceleration Time 0.5S

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 40 40 40 40 40 40
Side Mount Speed (mm/s) 40 40 30 - - -
Vertical Speed (mm/s) 40 40 40 40 - -
Inverted Speed (mm/s) 40 40 40 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 80 80 80 80 80 80
Side Mount Speed (mm/s) 80 80 60 - - -
Vertical Speed (mm/s) 80 80 60 60 - -
Inverted Speed (mm/s) 80 80 80 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 240 240 200 200 150 -
Side Mount Speed (mm/s) 200 200 100 - - -
Vertical Speed (mm/s) 240 200 - - - -
Inverted Speed (mm/s) 200 200 200 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 40 40 40 40 40 40
Side Mount Speed (mm/s) 40 40 40 - - -
Vertical Speed (mm/s) 40 40 40 40 - -
Inverted Speed (mm/s) 40 40 40 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 80 80 80 80 80 80
Side Mount Speed (mm/s) 80 80 80 - - -
Vertical Speed (mm/s) 80 80 60 60 - -
Inverted Speed (mm/s) 80 80 80 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 240 240 240 240 200 180
Side Mount Speed (mm/s) 240 200 150 - - -
Vertical Speed (mm/s) 240 200 150 - - -
Inverted Speed (mm/s) 240 220 200 - - -
