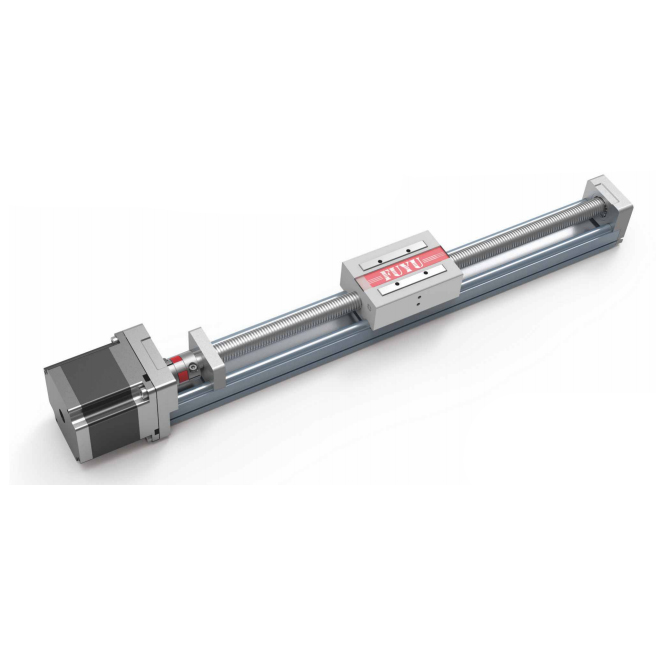

FSK40J Linear Module

Chinese Parameter English Translation Value
重复定位精度 Repeat Positioning Accuracy ±0.02 mm
滚珠丝杆直径 Ball Screw Diameter φ16 mm
滚珠丝杆导程 Ball Screw Lead 10 mm
噪音 Noise ≤ 60 dB
使用温度 Operating Temperature -20℃ — +50℃
加减速时间 Acceleration and Deceleration Time 0.5S

Mounting Method Load (kg) 5 10 15 20
Horizontal Speed (mm/s) 200 200 200 200
Side Mount Speed (mm/s) 100 - - -
Vertical Speed (mm/s) 100 80 - -
Inverted Speed (mm/s) 200 200 - -

Mounting Method Load (kg) 5 10 15 20
Horizontal Speed (mm/s) 350 350 320 320
Side Mount Speed (mm/s) 300 - - -
Vertical Speed (mm/s) 300 250 - -
Inverted Speed (mm/s) 300 300 - -

Term Explanation (Industry Standard)

  • (Ball Screw): High-precision linear transmission component, with higher efficiency and longer service life than T-type screw, suitable for high-speed, high-precision automation scenarios.
  • (Mounting Method):
    • Horizontal: Horizontal installation
    • Side Mount: Side installation
    • Vertical: Vertical installation
    • Inverted: Inverted/ceiling installation
  •  (Motor Type):
    • 5776 Stepper Motor: Stepper motor, cost-effective, suitable for low-speed, high-precision positioning scenarios.
    • 400W AC Servo Motor: AC servo motor, with closed-loop control, higher speed, stronger load capacity, suitable for high-speed, high-dynamic response scenarios.
  •  (Repeat Positioning Accuracy): ±0.02mm, indicating the positioning consistency of the module after multiple reciprocating movements.
