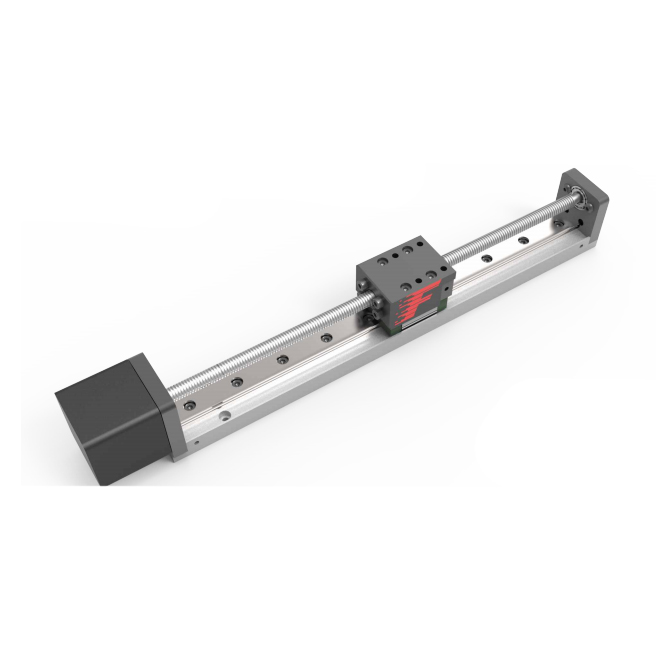

FSK30 Linear Module

Chinese Parameter English Translation Value
重复定位精度 Repeat Positioning Accuracy ±0.02 mm
T 型丝杆直径 Ladder-type Screw Diameter φ8 mm (uniform for all specifications)
T 型丝杆导程 Ladder-type Screw Lead 2 mm / 4 mm / 12 mm
噪音 Noise < 65 dB
使用温度 Operating Temperature -10℃ — +50℃
加减速时间 Acceleration and Deceleration Time 0.5S

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 40 40 40 40 40 40
Side Mount Speed (mm/s) 40 40 40 - - -
Vertical Speed (mm/s) 40 40 30 30 - -
Inverted Speed (mm/s) 40 40 40 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 80 80 80 80 80 80
Side Mount Speed (mm/s) 80 80 80 - - -
Vertical Speed (mm/s) 80 80 60 60 - -
Inverted Speed (mm/s) 80 80 80 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 240 240 220 220 200 200
Side Mount Speed (mm/s) 240 240 220 - - -
Vertical Speed (mm/s) 240 200 - - - -
Inverted Speed (mm/s) 240 240 200 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 40 40 40 40 40 40
Side Mount Speed (mm/s) 40 40 40 - - -
Vertical Speed (mm/s) 40 40 40 40 - -
Inverted Speed (mm/s) 40 40 40 - - -

Mounting Method Load (kg) 0.5 1.0 1.5 2.0 2.5 3.0
Horizontal Speed (mm/s) 80 80 80 80 80 80
Side Mount Speed (mm/s) 80 80 80 - - -
Vertical Speed (mm/s) 80 80 60 60 - -
Inverted Speed (mm/s) 80 80 80 - - -

Term Explanation (Industry Standard)

  •  (Lead): The linear distance the slider travels per revolution of the screw, a core parameter affecting speed and thrust.
  •  (Mounting Method):
    • Horizontal: Horizontal installation
    • Side Mount: Side installation
    • Vertical: Vertical installation
    • Inverted: Inverted/ceiling installation
  •  (Stepper Motor): 2832 is optional, 3534 is standard configuration, matching different power and speed requirements.
  •  (Repeat Positioning Accuracy): ±0.02mm, indicating the positioning consistency of the module after multiple reciprocating movements.
