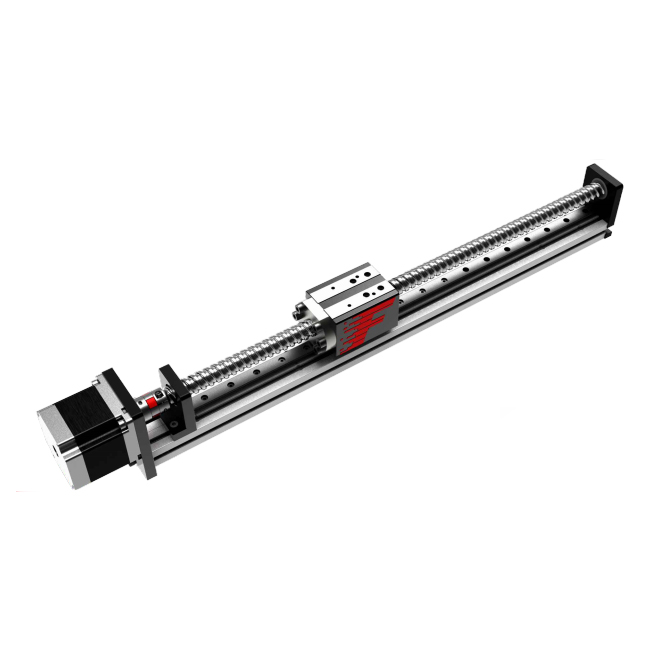

FSK40 Linear Module

FSK40 Linear Module Technical Parameter Sheet (Full English Translation)

Core Basic Parameters

Chinese Parameter English Translation Value
重复定位精度 Repeat Positioning Accuracy ±0.02 mm
滚珠丝杆直径 Ball Screw Diameter φ16 mm (uniform for all specifications)
滚珠丝杆导程 Ball Screw Lead 5 mm / 10 mm
噪音 Noise ≤ 65 dB
使用温度 Operating Temperature -20℃ — +50℃
加减速时间 Acceleration and Deceleration Time 0.5S

5756 Stepper Motor Load-Speed Parameters

Lead 5mm


Mounting Method Load (kg) 5 10 15 20 25
Horizontal Speed (mm/s) 100 100 100 100 90
Side Mount Speed (mm/s) 100 100 80 - -
Vertical Speed (mm/s) 100 100 80 60 -
Inverted Speed (mm/s) 100 100 80 - -

Lead 10mm


Mounting Method Load (kg) 5 10 15 20 25
Horizontal Speed (mm/s) 200 200 200 200 180
Side Mount Speed (mm/s) 200 180 150 - -
Vertical Speed (mm/s) 200 180 120 80 -
Inverted Speed (mm/s) 200 180 150 - -

400W AC Servo Motor Load-Speed Parameters

Lead 5mm


Mounting Method Load (kg) 5 10 15 20 25
Horizontal Speed (mm/s) 200 200 200 200 200
Side Mount Speed (mm/s) 200 200 180 - -
Vertical Speed (mm/s) 200 200 180 - -
Inverted Speed (mm/s) 200 200 180 - -

Lead 10mm

Mounting Method Load (kg) 5 10 15 20 25
Horizontal Speed (mm/s) 400 400 400 400 400
Side Mount Speed (mm/s) 400 400 350 - -
Vertical Speed (mm/s) 400 400 350 - -
Inverted Speed (mm/s) 400 400 350 - -

Term Explanation (Industry Standard)

  •  (Ball Screw Lead): The linear distance the slider travels per revolution of the screw, a core parameter that directly affects the module's speed and thrust.
  •  (Mounting Method):
    • Horizontal: Horizontal installation
    • Side Mount: Side installation
    • Vertical: Vertical installation
    • Inverted: Inverted/ceiling installation
  •  (Motor Type):
    • 5756 Stepper Motor: Cost-effective stepper motor, suitable for low-speed, high-precision positioning scenarios.
    • 400W AC Servo Motor: Closed-loop control servo motor, with higher speed, stronger load capacity and dynamic response, suitable for high-speed automation scenarios.
  •  (Repeat Positioning Accuracy): ±0.02mm, indicating the positioning consistency of the module after multiple reciprocating movements.
