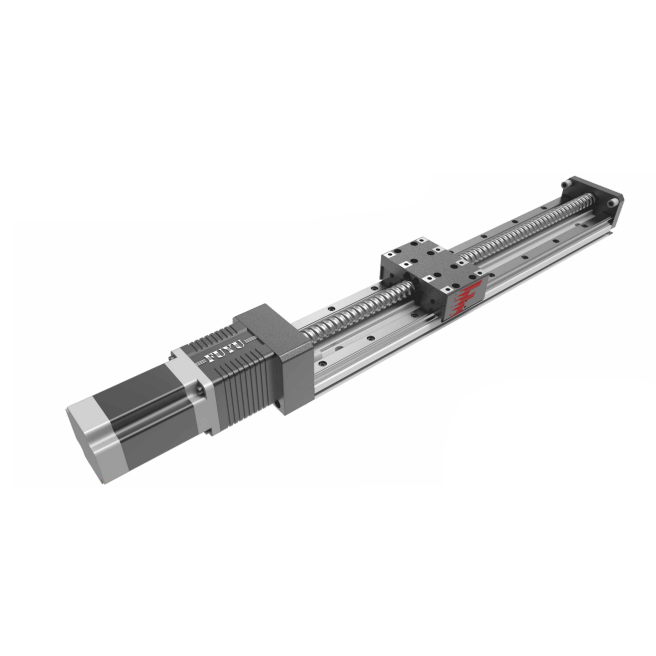

FSK80 Linear Module Technical Parameter Sheet (Full English Translation)

Core Basic Parameters

Chinese Parameter	English Translation	Value
重复定位精度	Repeat Positioning Accuracy	±0.02 mm
滚珠丝杆直径	Ball Screw Diameter	φ16 mm
滚珠丝杆导程	Ball Screw Lead	10 mm
噪音	Noise	≤65 dB (Stepper Motor) / ≤75 dB (Servo Motor)
使用温度	Operating Temperature	-10℃ — +50℃
加减速时间	Acceleration and Deceleration Time	0.5S

60102 Stepper Motor Load-Speed Parameters

Mounting Method	Load (kg)	5	10	15	20	25	30	35	40	45	50
Horizontal	Speed (mm/s)	200	200	200	200	200	200	200	180	-	-
Side Mount	Speed (mm/s)	200	200	180	-	-	-	-	-	-	-
Vertical	Speed (mm/s)	90	90	80	80	-	-	-	-	-	-
Inverted	Speed (mm/s)	200	200	200	200	180	180	-	-	-	-

400W AC Servo Motor Load-Speed Parameters

Mounting Method	Load (kg)	5	10	15	20	25	30	35	40	45	50
Horizontal	Speed (mm/s)	400	400	400	400	400	400	400	380	380	380
Side Mount	Speed (mm/s)	400	400	400	-	-	-	-	-	-	-
Vertical	Speed (mm/s)	200	200	180	180	-	-	-	-	-	-
Inverted	Speed (mm/s)	400	400	400	400	400	380	-	-	-	-

(Ball Screw Lead): The linear distance the slider travels per revolution of the screw, a core parameter that directly affects the module's speed and thrust.
(Mounting Method):
- Horizontal: Horizontal installation
- Side Mount: Side installation
- Vertical: Vertical installation
- Inverted: Inverted/ceiling installation
(Motor Type):
- 60102 Stepper Motor: Cost-effective stepper motor, suitable for medium-load, high-precision positioning scenarios.
- 400W AC Servo Motor: Closed-loop control servo motor, with higher speed, stronger load capacity and dynamic response, suitable for high-speed automation scenarios.
(Repeat Positioning Accuracy): ±0.02mm, indicating the positioning consistency of the module after multiple reciprocating movements.
