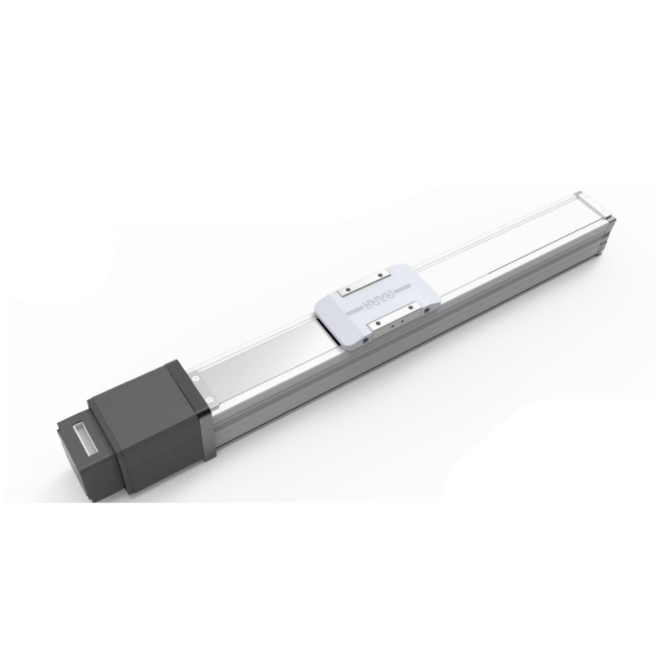

3534 Stepper Motor Integrated Linear Module Technical Parameter Sheet (Full English Translation)

Core Basic Parameters

Chinese Parameter	English Translation	Value
重复定位精度	Repeat Positioning Accuracy	±0.02 mm
滚珠丝杆直径	Ball Screw Diameter	φ8 mm (uniform for all specifications)
滚珠丝杆导程	Ball Screw Lead	4 mm / 12 mm
噪音	Noise	≤ 65 dB
使用温度	Operating Temperature	-10℃ — +50℃
加减速时间	Acceleration and Deceleration Time	0.5S

Mounting Method	Load (kg)	0.5	1.0	1.5	2.0	2.5	3.0
Horizontal	Speed (mm/s)	80	80	80	80	80	80
Side Mount	Speed (mm/s)	80	80	-	-	-	-
Vertical	Speed (mm/s)	80	80	-	-	-	-
Inverted	Speed (mm/s)	80	80	-	-	-	-

Lead 12mm

Mounting Method	Load (kg)	0.5	1.0	1.5	2.0	2.5	3.0
Horizontal	Speed (mm/s)	240	240	200	200	200	180
Side Mount	Speed (mm/s)	240	240	-	-	-	-
Vertical	Speed (mm/s)	240	180	-	-	-	-
Inverted	Speed (mm/s)	240	240	-	-	-	-

(Ball Screw Lead): The linear distance the slider travels per revolution of the screw, a core parameter directly affecting the module's speed and thrust.
(Mounting Method):
- Horizontal: Horizontal installation
- Side Mount: Side installation
- Vertical: Vertical installation
- Inverted: Inverted/ceiling installation
(3534 Integrated Stepper Motor): Integrated stepper motor with compact structure, no external drive required, suitable for small-load, high-precision positioning scenarios.
(Repeat Positioning Accuracy): ±0.02mm, indicating the positioning consistency of the module after multiple reciprocating movements.
